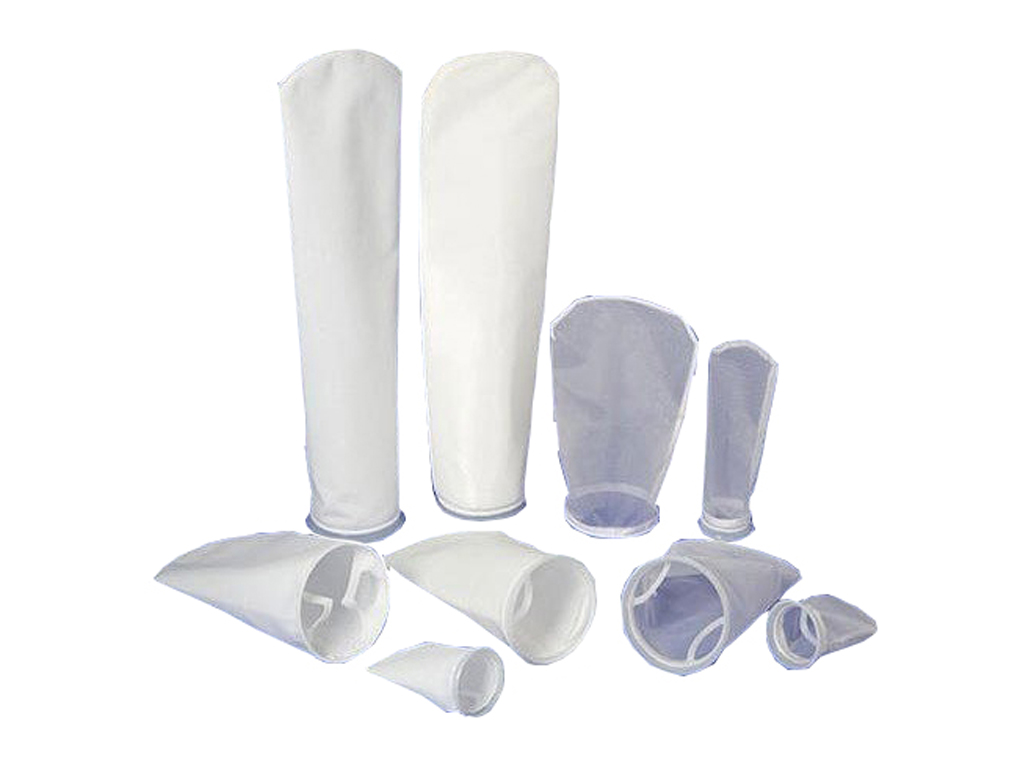

Available Sizes
4'' Dia X 20" Long , 7" Dia x 32" Long
Specification of Filter Fabrics
| Quality No | WEIGHT SQ.MTR +/- 5% IN GSM | TENSIL STRENGTH (+/- IN KG) WARP / WEFT |
AIR PERMEABILITY (CU FT./SQ.FT/SCE.AT 1.22"W.C) | PARTICLE RETENTION MICRON (APPROX) | MESH APPORX |
|---|---|---|---|---|---|
| 099 | 270 | 200 / 140 | 0.97 | 30 TO 40 | 150 |
| 001 | 315 | 235 / 130 | 0.83 | 25 TO 30 | 250 |
| 005 | 380 | 354 / 135 | 0.50 | 15 TO 20 | 400 |
| 006 | 450 | 360 / 245 | 0.43 | 10 TO 15 | 450 |
| 007 | 520 | 360 / 250 | 0.30 | 5 TO 7 | 550/600 |
| 008 | 600 | 450 / 236 | 0.20 | 3 TO 5 | 650 |
| 008/HV | 695 | 426 / 350 | 0.20 | 3 TO 5 | 700 |
| PPM-011 | 240 | 295 / 145 | 0.50 | 10 TO 15 | 400 |
| PPM-123 | 400 | 450 / 300 | 0.22 | 10 TO 15 | 400 |
| PPM-23/HV | 450 | 510 / 310 | 0.19 | 5 TO 8 | 550 |
| NAV-999 | 500 | 500 / 400 | 0.13 | 3 TO 5 | 700 |
| PY-005 | 430 | 325 / 250 | 0.20 | 15 TO 20 | 350 |
| PY-007 | 550 | 325 / 300 | 0.12 | 5 TO 10 | 500 |
| PY-126 | 700 | 600 / 308 | 0.11 | 2 TO 4 | 700 TO 725 |
| NY-011 | 330 | 310 / 275 | 0.60 | 10 TO 15 | 400 |
| NY-123 | 450 | 548 / 414 | 0.23 | 5 TO 10 | 500 |
